STRICT QUALITY CONTROL SYSTEM

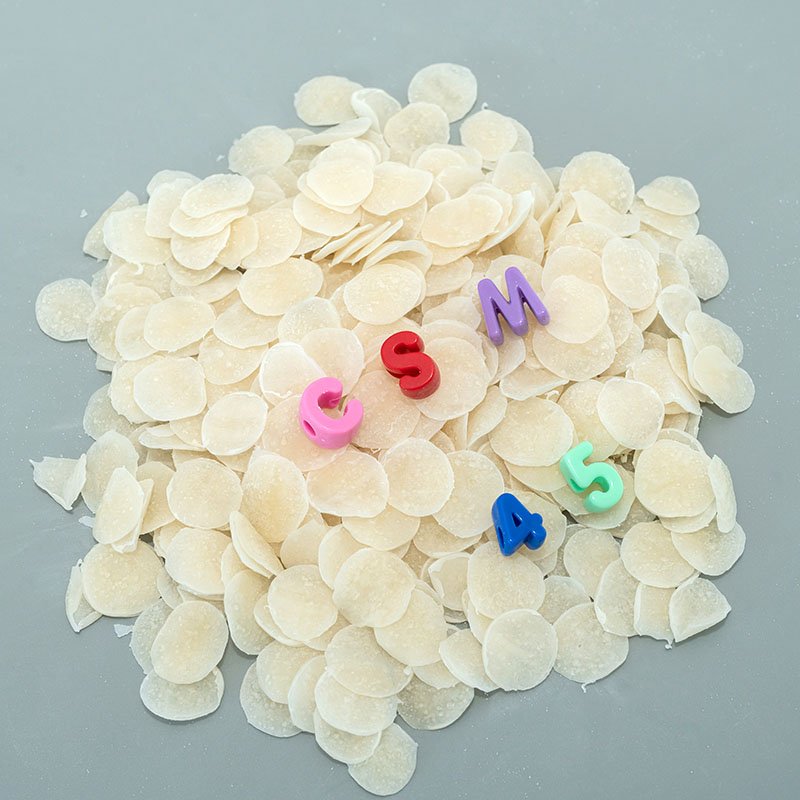

Chlorosulfonated polyethylene (CSM)

SYNTHETIC RUBBER

Chlorosulfonated polyethylene (CSM)

Chlorosulfonated polyethylene (CSM)

CSM elastomers are synthetic rubber based on polyethylene.They are well- known for their resistance to atmospheric conditions along with their resistance to many acids and alkalis  such as nitric, sulfuric and phosphoric acids.

Vulcanized forms of chlorosulfonated polyethylene are highly resistant to the deteriorating effects of ozone, sunlight,oxygen, extreme weather, heat, oil and chemicals.

PRODUCT INTRODUCTION

Why choose our Chlorosulfonated polyethylene (CSM)

  • Superb ozone and weather resistance, even in non-black products

  • Resistant to aggressive chemicals such as chromic, nitric, sulfuric and phosphoric acids and alkalis

  • Oil resistant with low gas permeability and solvent resistance

  • Electrical insulating properties

  • Low flammability characteristics or fire resistance (associated with chlorinated polymers)

  • Excellent resistance to abrasion and mechanical abuse

  • Permanent bright colors & excellent UV stability.

  • Heat resistant to 150°C

Frequently Asked Questions

Which CSM grades do you supply and what are the equivalents?

We supply CSM-40, CSM-45 and CSM-80. CSM-40 (chlorine 35±2%, sulfur 1.0-1.5%, Mooney ML(1+4) 100°C 40~60) corresponds to HYPALON 40S/40 and TOSO TS-430/530; CSM-45 (chlorine 25±2%, Mooney 35~45) corresponds to TS-320; CSM-80 (chlorine 35±2%, Mooney 85~95) corresponds to TS-830.

What does the grades range cover?

Chlorine content spans 25±2% to 35±2% with sulfur content of 1.0-1.5% across the series, and Mooney viscosity ML(1+4) 100°C ranges from 35~45 up to 85~95. All grades are supplied as white or light yellow flakes.

What are CSM grades used for?

CSM is valued for resistance to ozone, sunlight, extreme weather and to acids such as nitric, sulfuric and phosphoric acid. Typical uses include wire and cable coatings, gaskets, tubes and roofing membranes.

Request a Sample or the Full Technical Data Sheet

Tell us your application, PVC grade and target dosage and we will send the matching technical data sheet together with a free sample. Email info@fine-additive.com or call +86-186-6060-2416. Formulation and processing troubleshooting support is available on request.

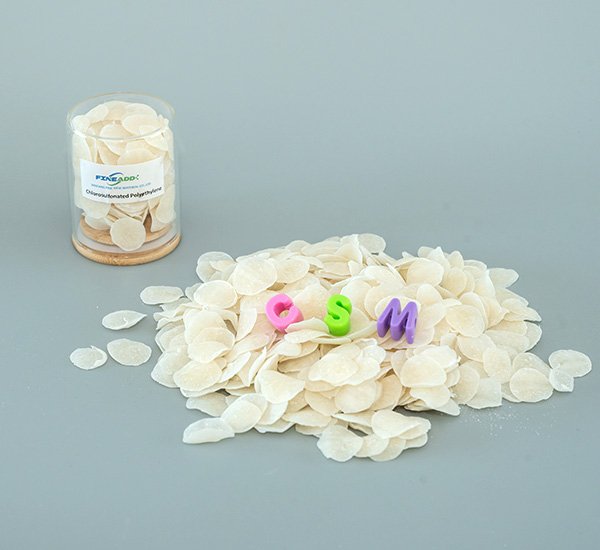

acid resistant csm synthetic rubber

Application of Chlorosulfonated polyethylene (CSM)

  • Automotive parts like hydraulic hoses, gaskets and flexible tubes

  • Mining wire & cable Sheathing materials

  • Gas and industrial applications,hydraulic pressure hose, oil and chemical delivery hose, rubber roller

  • Electric cable jacketing

  • Rubber coated cloth

  • Escalator handrails

  • Inflatable boats and folding kayaks

  • Coating & Adhesives ,like roofing membranes


PRODUCT PARAMETERS

Specification of Chlorosulfonated polyethylene (CSM)

Series

Chlorine  content %

Sulfur content %

Mooney viscosity ML(1+4)100℃

Appearance

Equivalents



CSM-40

35±2

1.0~1.5

40~60

White, light yellow flakes

HYPALON

40S/40

TOSO

TS-430/530

CSM-45

25±2

1.0~1.5

35~45

45



TS-320

CSM-80

35±2

1.0~1.5

85~95

4085

TS-830


PACKING AND STORAGE
