How to Eliminate Cell Collapse and Improve Impact Strength in High-Speed PVC Foam Board Extrusion

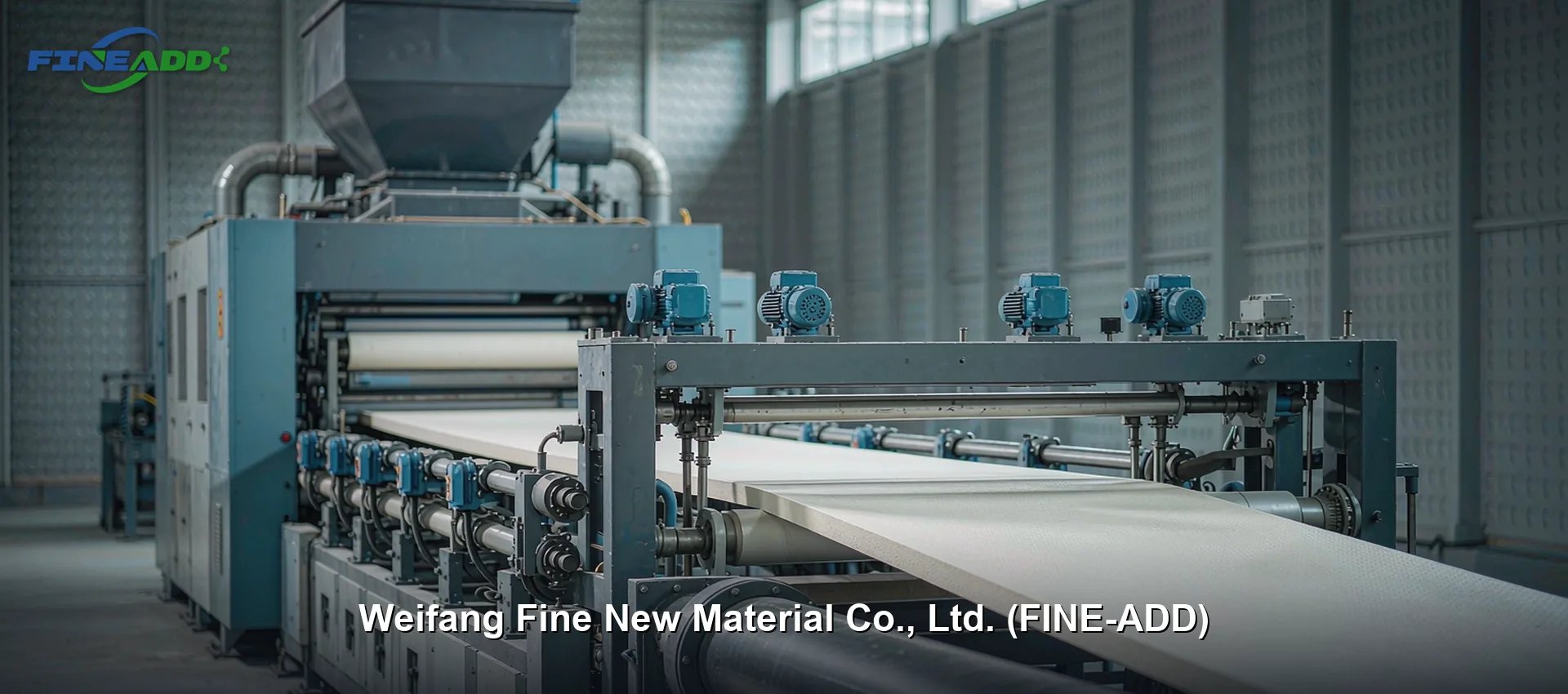

High-speed PVC foam board extrusion line with FINE-ADD additive solution

WEIFANG, China — Are you struggling with cell collapse, coarse micro-voids and brittle cracking as you ramp up your PVC foam board extrusion line speed? For PVC foam manufacturers worldwide, balancing high output rates with low density, uniform closed-cell structure and reliable mechanical toughness remains one of the most persistent operational bottlenecks — and a top driver of scrap costs and inconsistent product quality.

To resolve these high-speed extrusion challenges, technical experts from Weifang Fine New Material Co., Ltd. (FINE-ADD) — a leading China-based manufacturer of PVC additives and synthetic rubber modifiers with 5,000+ delivered orders across 40+ countries — share a proven, formulation-focused strategy centered on additive synergy and melt strength optimization.

Why Cell Collapse and Brittleness Occur in High-Speed PVC Foam Extrusion

During high-speed foam board extrusion, PVC melt undergoes intense shear force and rapid gas expansion from chemical foaming agents. Cell collapse, core voiding and poor impact strength almost always trace back to three root causes:

1. Insufficient PVC Melt Strength

When the PVC melt lacks adequate elasticity and melt viscosity, the thin cell walls formed by foaming agents burst or rupture under internal gas pressure. This leads to cell coalescence, large internal voids and uneven foam density — the primary cause of PVC foam board cell collapse at high line speeds.

2. Poor Dispersion of Impact Modifiers

Inadequate gelation or uneven distribution of impact modifiers creates internal stress concentration points throughout the PVC matrix. These weak points make the finished foam board prone to edge cracking and brittle failure, especially under impact or bending loads.

3. Imbalanced Thermal Stability & Lubrication

Improper lubrication shifts the plasticization zone along the extruder barrel, while thermal degradation during high-rate processing weakens polymer chain structure. The result is inconsistent melt quality, surface defects and unstable extrusion torque.

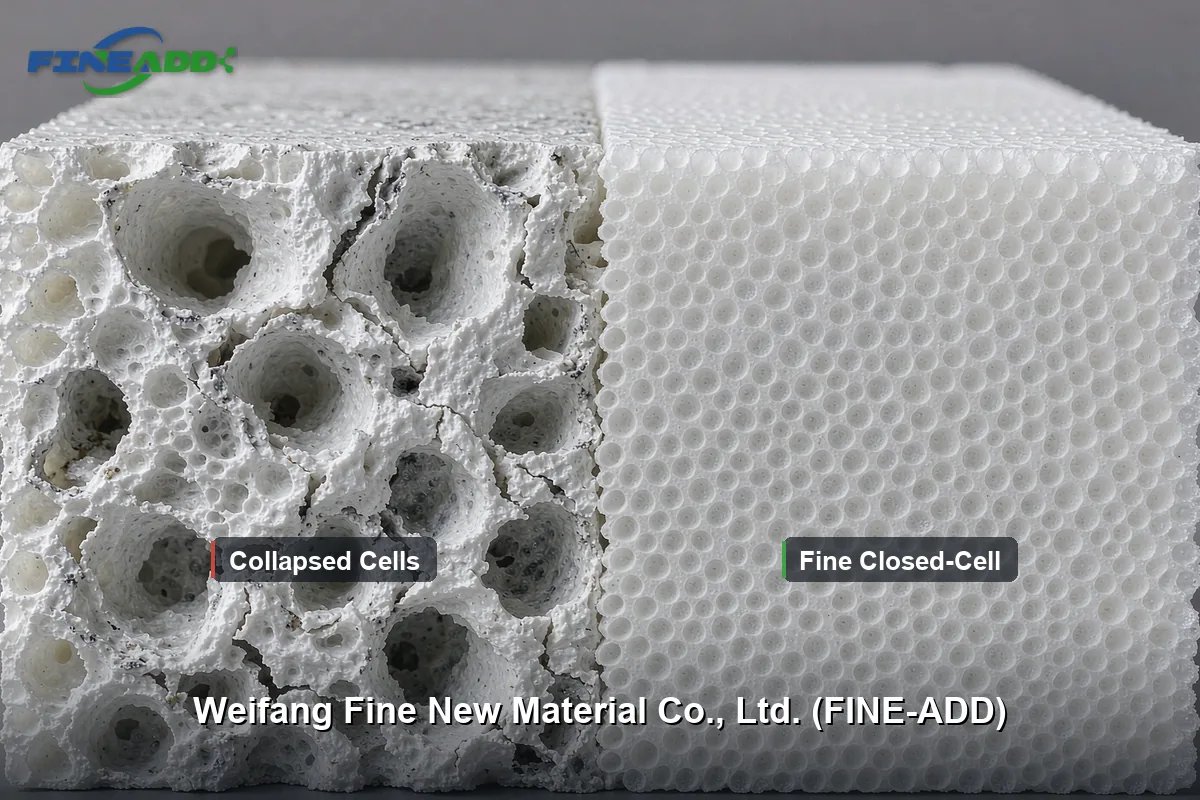

Left: Collapsed cells from standard formulation; Right: Fine closed-cell structure with FINE-ADD ACR + CPE 135A

3-Step Formulation Strategy to Fix Cell Collapse & Boost Impact Strength

To maintain a fine, closed-cell structure and high mechanical strength even at maximum extrusion speeds, FINE-ADD recommends a targeted three-part formulation adjustment:

1. Boost Melt Strength with High-Molecular Acrylic Processing Aids (ACR)

Ultra-high molecular weight acrylic processing aids (ACR) act as a reinforcing molecular network within the PVC matrix.

•Mechanism: High-molecular ACR increases the elasticity and viscosity of the PVC melt, effectively encapsulating the gas generated by chemical foaming agents.

•Result: It prevents gas escape and cell merging, eliminating cell collapse and delivering a uniform, low-density foam core with consistent cell size.

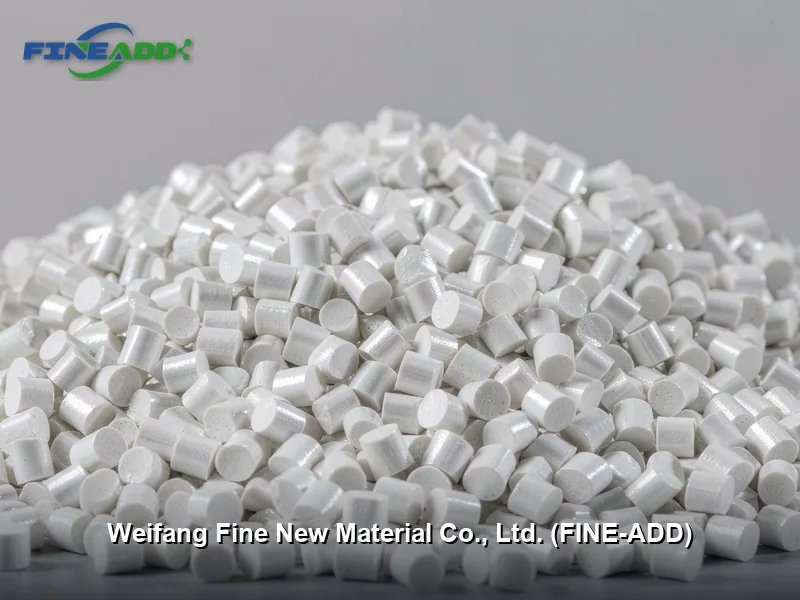

FINE-ADD high-molecular acrylic processing aid (ACR) for PVC melt strength enhancement

2. Enhance Impact Toughness with CPE 135A Chlorinated Polyethylene

Incorporating high-quality CPE 135A chlorinated polyethylene impact modifier directly addresses foam board brittleness without sacrificing rigidity.

•Mechanism: CPE 135A forms a fine elastomeric network inside the rigid PVC matrix that absorbs impact energy and inhibits crack propagation.

•Result: Significantly higher Izod impact strength and superior flexural toughness, with no loss in board stiffness or dimensional stability.

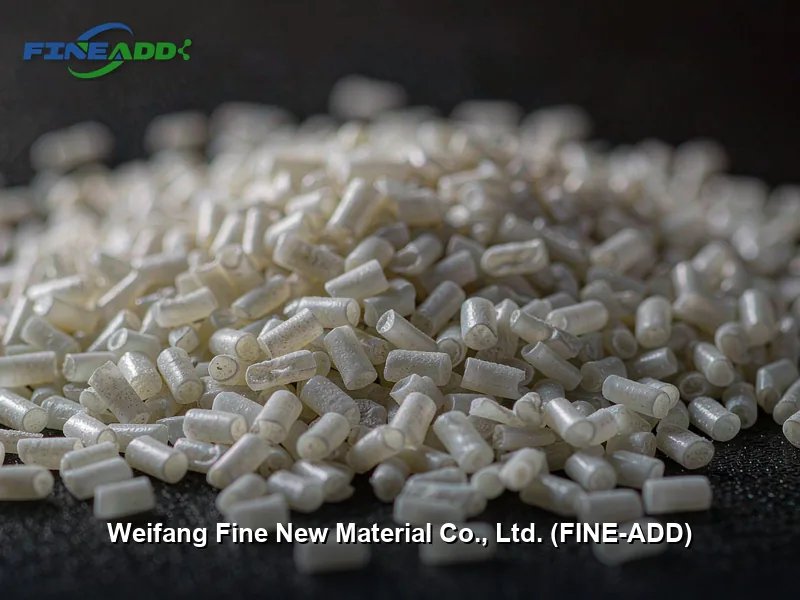

FINE-ADD CPE 135A impact modifier for PVC foam board toughness and crack resistance

3. Balance Lubrication & Thermal Stabilization for High-Speed Extrusion

Stabilizing thermal degradation and optimizing internal/external lubrication ensures uniform plasticization along the entire extruder barrel, even at elevated production speeds.

•Internal lubricants: Accelerate fusion and improve melt cohesion for consistent cell formation.

•External lubricants: Prevent melt adhesion to metal barrel walls and control frictional heat buildup during high-speed extrusion.

Performance Results: What You Can Expect

When high-grade ACR processing aids are combined with CPE 135A impact modifiers in a balanced PVC foam formulation, processors typically achieve:

•Elimination of cell collapse and coarse voids at high line speeds

•Charpy impact strength improved from 12.5–15.0 kJ/m² to 22.0–26.5 kJ/m²

•Extrusion scrap rate reduced by over 12%

•Smooth surface finish and consistent low-density foam structure

•Stable torque and reliable continuous production

For broader application scenarios, the same additive synergy also applies to WPC extrusion and rigid PVC profile production to reduce scrap rates.

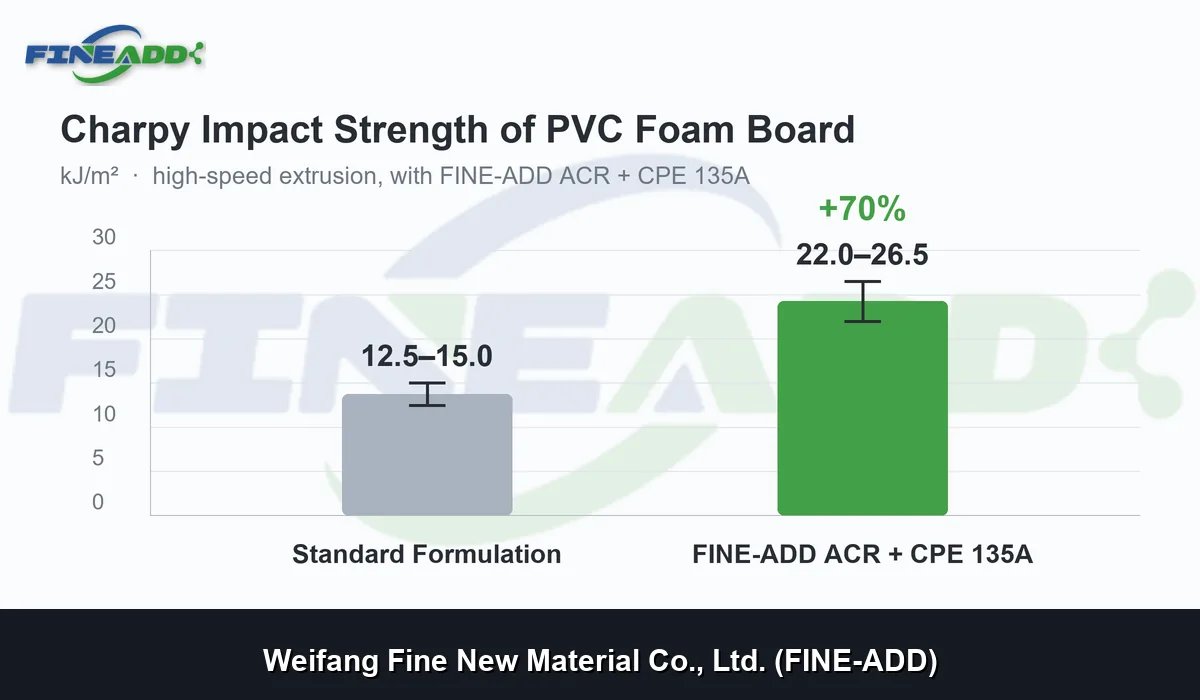

Charpy impact strength comparison: standard formulation vs FINE-ADD optimized ACR + CPE 135A formulation

Frequently Asked Questions (FAQ)

What is the main cause of cell collapse in PVC foam board extrusion?

The primary cause is insufficient PVC melt strength. At high extrusion speeds, low melt elasticity allows foaming gas to break through cell walls, leading to cell coalescence and internal voids. High-molecular ACR processing aids are the most effective solution.

How do you improve the impact strength of PVC foam board?

The most reliable method is to add CPE 135A chlorinated polyethylene impact modifier, which forms an elastomeric network in the PVC matrix to absorb impact energy and stop crack growth. It improves toughness without reducing board rigidity.

Can you increase extrusion speed without losing foam quality?

Yes, by combining three adjustments: high-molecular ACR to boost melt strength, CPE 135A for toughness, and a balanced lubricant/stabilizer system to control plasticization and friction. This allows higher line speeds while maintaining uniform cell structure and mechanical performance.

Are FINE-ADD PVC additives suitable for global foam board manufacturers?

Yes. FINE-ADD supplies export-grade CPE and REACH-compliant ACR processing aids to PVC foam board manufacturers across North America, Europe, the Middle East and Southeast Asia, with formulation support tailored to regional production standards.

Industry Takeaway

Eliminating cell collapse while simultaneously improving impact strength in PVC foam board extrusion requires a dual focus on melt strength enhancement and elastomeric modification. By leveraging high-grade ACR processing aids alongside CPE 135A impact modifiers, polymer processors can reliably achieve smooth surface finishes, fine closed-cell structures and superior toughness — even at maximum extrusion line speeds.

About FINE-ADD

Weifang Fine New Material Co., Ltd. is a leading PVC additive and synthetic rubber manufacturer based in Weifang, Shandong, China. We specialize in high-performance CPE 135A, acrylic processing aids, PVC stabilizers and CM/CSM rubber, serving 40+ countries worldwide with custom formulation support and technical service.

For tailored technical support, formulation guidance, or modifier product datasheets, contact our technical team or explore our full PVC additives range.
