STRICT QUALITY CONTROL SYSTEM

CPE 135A Impact Modifier for PVC Modification

CPE Impact Modifier

CPE Impact Modifier

Compared with other PVC impact modifiers like AIM (Acrylic Impact Modifier), MBS and ABS, CPE is more competitive in its comprehensive performances and price.

PRODUCT INTRODUCTION

Chlorinated Polyethylene

Chlorinated Polyethylene as an thermoplastic Resin is an superb impact modifier widely used in PVC extrusion and injection molding products (including pipe, profile,board,panels,sheet and seal strip) to improve their weather-ability and impact strength.


Why choose our CPE

Adopting Acid-Phase method production technology for the chlorination reaction of HDPE , the whole production process of CPE is controlled precisely by DCS,all of which ensure the first-class quality of CPE.

  • Chlorine well-distributed, high whiteness & better flexibility

  • HCL can be recycled and more environmentally-friendly



Adding low dosage of our CPE resin may highly improve the impact resistance of rigid PVC and enhance its processing flowability and durability of PVC-based products.

  • Excellent resistance to weather, chemicals ,oil, heat conditions

  • Outstanding low-temperature performance (remaining flexible at -30℃)

  • High filling capacity & remarkable compatibility

  • Good flame retardancy and coloring performance.

  • Abrasion resistance

  • Without risking plasticizer migration

Frequently Asked Questions

What chlorine content and CPE grade should I choose?

FINE-ADD supplies six CPE grades across three chlorine levels: 25% (CPE2500T), 35% (CPE135A, CPE7035, CPE3135, CPE135C) and 40% (CPE140C), each within a nominal tolerance of ±1%. CPE 135A is the general-purpose grade used in PVC pipes, profiles and boards. Send us your target chlorine content, tensile strength and dosage and we will recommend the matching grade.

What is the recommended dosage of CPE in rigid PVC?

The typical starting dosage is 8.0-12.0 kg of CPE per 100 kg of PVC resin. The final loading depends on the impact level required, the rest of the formulation and the processing conditions.

What are the typical specifications of your CPE grades?

Across the range: chlorine content 25-40%, Shore A hardness ≤65, tensile strength ≥8.0 MPa (≥6.0 MPa for CPE140C), elongation ≥500-700%, and heat of fusion ≤2.0 J/g for the 35% chlorine grades.

How does CPE compare with acrylic (AIM/ACM) and MBS impact modifiers?

CPE is generally more competitive in overall performance and price, and it keeps PVC flexible down to about -30°C without risking plasticizer migration. Acrylic impact modifiers are the usual choice where clarity or transparency matters, while MBS is preferred for clear and opaque applications needing high impact at low dosage. See our CPE 135A vs ACR vs MBS selection guide for a full comparison.

What packaging and shelf life do you supply?

Packed in 25 kg PP valve bags with PE liner, or in super sacks. Store in a cool, dry and ventilated area. Shelf life is two years; material beyond shelf life can still be used if it passes a retest.

How is the CPE produced, and what about environmental impact?

CPE is made by chlorination of HDPE using the acid-phase process, with the whole reaction controlled by DCS for consistent quality. Chlorine is well distributed, giving high whiteness and better flexibility, and the HCl by-product can be recycled, which makes the process more environmentally friendly.

Request a Sample or the Full Technical Data Sheet

Tell us your application, PVC grade and target dosage and we will send the matching technical data sheet together with a free sample. Email info@fine-additive.com or call +86-186-6060-2416. Formulation and processing troubleshooting support is available on request.

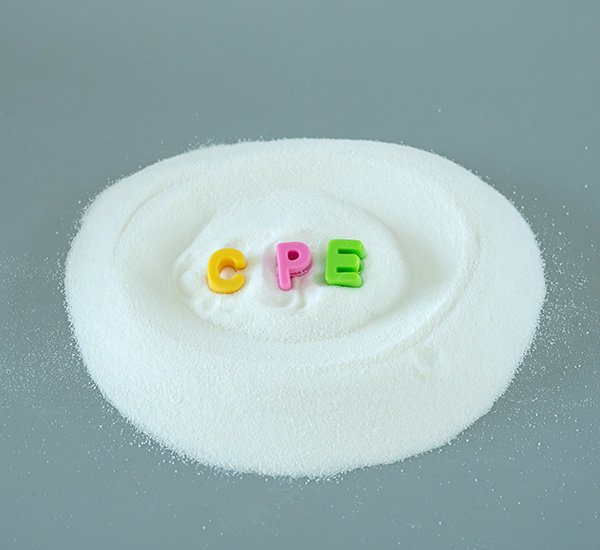

CPE Impact Modifier resin for PVC extrusion

CPE resins can be blended with plastics such as PVC, PE,PP,Polyolefins,PS, ABS and even PU.

Compared with other PVC impact modifiers like AIM, MBS and ABS, CPE is more competitive in its comprehensive performances and price.


PRODUCT PARAMETERS

Specification of Chlorinated Polyethylene (CPE)

Item

Unit

CPE135A

CPE7035

CPE3135

CPE2500T

CPE135C

CPE140C

Chlorine content

%

35±1.0

35±1.0

35±1.0

25±1

35±1

40±1

Heat of fusion

J/g

≤2.0

≤2.0

≤2.0

≤5.0

≤5.0

≤5.0

Shore A hardness

(A)

≤65

≤65

≤65

≤65

≤65

≤65

Tensile strength

MPa

≥8.0

≥8.0

≥8.0

≥8.0

≥6.0

≥8.0

Elongation

%

≥700

≥700

≥700

≥700

≥600

≥500

Suggestion dosage:8.0-12.0kg per 100kg PVC resin.


PACKING AND STORAGE

PACKING AND STORAGE

25kg/bag PP valve bag with PE liner or super sack .

The Product should be stored in cool ,dry and ventilated area.Shelf- life of two years, it can be still used if qualified by inspection after shelf life.

Rigid PVC enhanced with high-quality CPE
CPE for chemical and oil resistant PVC
Low-temperature resistant CPE-modified PVC
