How to Eliminate Cell Collapse in PVC Foam Board Extrusion



Updated September 2026: This article has been expanded with new formulation data for high-speed extrusion lines. Read the latest version: How to Eliminate Cell Collapse and Improve Impact Strength in High-Speed PVC Foam Board Extrusion.

In high-speed PVC foam board and Wood-Plastic Composite (WPC) extrusion, manufacturers consistently face processing trade-offs between linear output speed, uniform cell structure, and mechanical toughness. Cell collapse (pore rupture) and brittle cracking are primarily caused by melt elasticity failure and non-homogeneous fusion under elevated shear stress. This technical paper outlines the rheological mechanisms driving cell instability and provides a proven formulation strategy utilizing high-molecular-weight Acrylic Processing Aids (ACR) and Chlorinated Polyethylene (CPE 135A) to eliminate internal voids, stabilize density, and boost impact resistance.

1. The Rheological Challenge in High-Output PVC Foam Extrusion

Rigid PVC foam boards (including free-foam, Celuka, and co-extruded foam sheets) rely on a delicate thermodynamic equilibrium: chemical blowing agents release gas into the melt, forming microcellular bubbles that expand until the polymer cools below its glass transition temperature.

When line speeds are pushed higher to maximize factory capacity, processing temperatures and screw shear stress rise accordingly. Under these conditions, standard PVC melt formulations experience severe rheological strain:

• Insufficiency in Melt Strength: As temperature increases, pure PVC melt viscosity drops rapidly. The cell walls lack the tensile strength required to sustain internal gas pressure during expansion.




• Pore Rupture & Cell Coalescence: Expanding bubbles break through thin cell walls, merging into larger voids. This leads to internal hollows, coarse cellular structures, and surface pitting.




• Impact Toughness Degradation: Non-uniform, large cell structures act as stress concentrators. When subjected to physical impact or bending, micro-cracks propagate along cell boundaries, resulting in brittle failure.




2. Root Causes of Cell Collapse: A Chemical Perspective

Achieving a fine, closed-cell microcellular foam requires controlling two critical variables: plasticization speed and melt elasticity. Cell collapse typically stems from three formulation deficiencies:

1. Premature or Delayed Plasticization: Improper external/internal lubricant ratios alter torque distribution, leading to thermal decomposition or incomplete PVC resin gelation prior to the die zone.




2. Low Melt Viscoelasticity: Without high-molecular-weight processing modifiers, the melt wall surrounding gas bubbles cannot undergo strain hardening during rapid expansion.




3. Incompatible Toughening Agents: Low-grade or improperly chlorinated impact modifiers destabilize the melt phase, creating localized phase separation that ruptures micro-cells.




3. Dual-Action Formulation Strategy for Process Stabilization

Step A: Boosting Melt Elasticity via High-Molecular-Weight ACR

To withstand internal gas pressure during extrusion, high-molecular-weight Acrylic Processing Aids (ACR) must be incorporated. The long acrylate chains entanglement with PVC polymer chains, creating an elastic molecular network that increases melt strength and elongational viscosity.

Mechanism of Action: During gas bubble expansion, the FINE-ADD High-Melt ACR package provides rapid strain hardening. As the cell wall thins out, its localized resistance to further stretching increases automatically. This prevents cell wall rupture, maintaining an ultra-fine closed-cell structure even at elevated line speeds.

Step B: Structural Toughening with Premium CPE 135A

While ACR manages melt elasticity, physical impact properties are governed by elastomer distribution. FINE-ADD CPE 135A (Chlorinated Polyethylene) introduces a fine elastomeric network interspaced within the rigid PVC matrix.

• Optimized Chlorination (~35%): Ensures precise thermodynamic compatibility with PVC, forming a structured phase domain that dissipates impact energy.




• Thermal & Color Stability: High-purity CPE prevents thermal degradation under high shear, ensuring consistent board whiteness and weatherability.

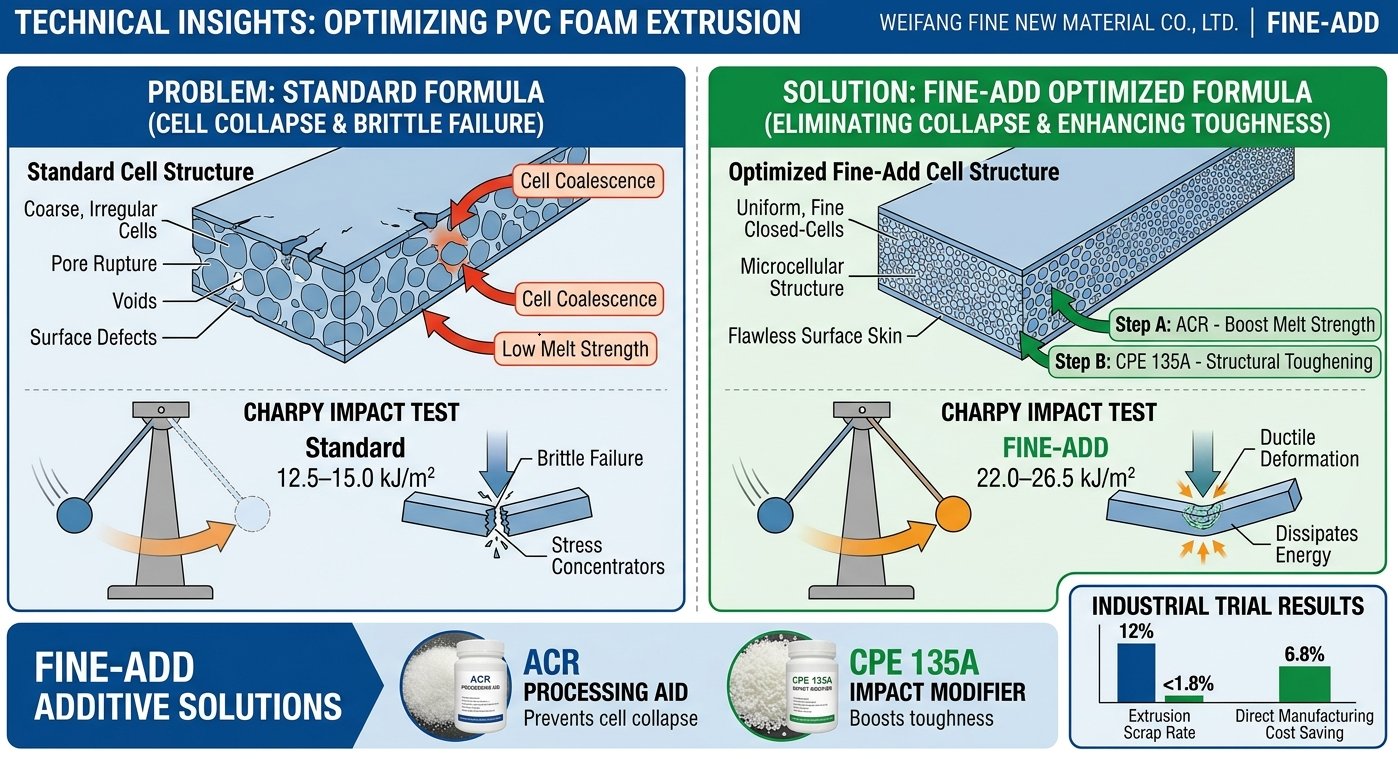

4. Technical Performance Matrix: Modified vs. Unmodified PVC Foam

Industrial Trial: European WPC & PVC Foam Sheet Producer

Challenge: A European building material manufacturer experienced a 12% scrap rate due to edge cracking and central bubble collapse when increasing line speed by 15% on a 18mm Celuka line.

Solution: The technical team integrated a customized package comprising FINE-ADD High-Melt Acrylic Processing Aid and FINE-ADD CPE 135A Impact Modifier, alongside minor lubrication rebalancing.

Results: Scrap rate dropped from 12% to below 1.8%. Core density decreased by 8% while maintaining flexural rigidity, resulting in an overall direct manufacturing cost saving of 6.8%.

5. Recommended Processing Guidelines

To maximize foam quality and mechanical strength during high-speed extrusion, maintain the following balance:

1. Temperature Profile: Keep the metering section temperature slightly lower (165°C – 175°C) to maintain high melt viscosity, while elevating die adapter temperature (185°C – 195°C) to ensure a flawless surface skin.




2. Dosing Ratio: Use 6.0 – 10.0 phr of High-Melt ACR depending on targeted density reduction. Pair with 4.0 – 6.0 phr of CPE 135A for optimum impact toughness.




3. Feeder Synchronization: Ensure precise gravimetric feeding to avoid fluctuations in plasticization torque and cell nucleation density.
